MODEL 520A

OSHA ACCEPTED

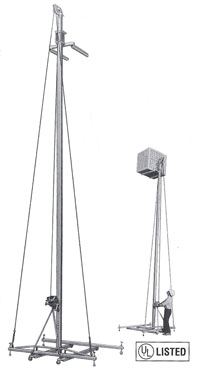

One man can now lift 500 lb. loads up to 20 ft. (22 ft. with optional height extension) in two minutes or less - this can be done with the Model 520A Lift.  This unit is equipped with guy cables, outrigger bars, and adjustable wing-screw levers with sturdy rubber feet to stabilize the load.  If used on bare ground, wood blocks should be placed under casters and levers.  To move the unit on hard surface, simply raise the rubber footed levers slightly to allow the swivel casters to turn freely.

Where intermediate heights are desired, the model is quickly converted to a 16, 14, 10 or even a 5 ft. lift, either by removing or replacing the proper post sections.  2 ft. post section shown in specifications page provide for all intermediate heights in 2 ft. increments. When the MODEL 520A  is assembled as a 5 ft. lift, it  can be tipped back on the corrugated handle and rolled into a truck or van.

WARNING:  DO NOT USE EXTRA POSTS TO INCREASE THE DESIGNED MAXIMUM HEIGHT OF 20' ON THE MODEL 520A LIFT.
